DELTA

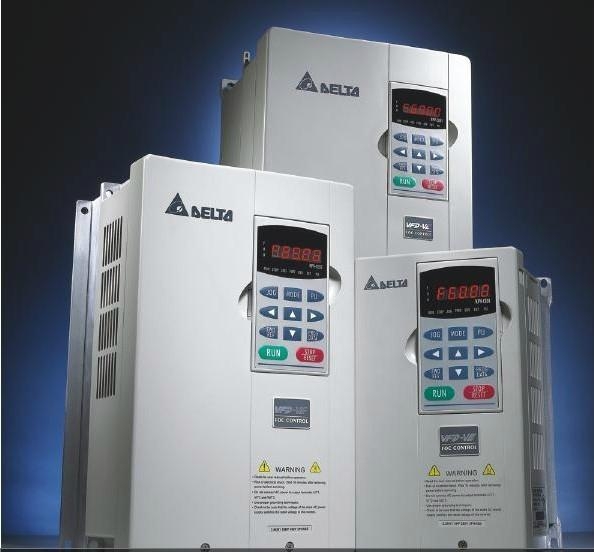

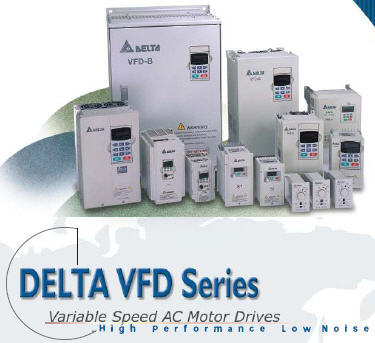

Inverter Delta

Inverter Delta. Dengan elektronik daya modern dan teknologi mikroprosesor yang canggih, AC Motor Drives Delta mampu mengendalikan kecepatan motor secara efisien, meningkatkan otomatisasi alat berat, dan menghemat energi. Mengambil keuntungan dari posisi kuat kami dalam teknologi elektronik daya, Seri VFD Drive motor AC Delta telah berkembang pesat. Setiap seri Drive dirancang untuk memenuhi kebutuhan aplikasi spesifik. AC Drives kami secara akurat mengontrol kecepatan dan torsi, menangani beban yang lancar dengan lancar, dan menyediakan banyak mode kustom dan mode pengoperasian konfigurasi. Lini produk AC Motor Drive kami menyediakan berbagai teknologi kontrol motor dan digunakan di berbagai industri, untuk meningkatkan dan meningkatkan otomatisasi alat berat.

Categories: DELTA, INVERTER
  • Description
  • Product Inquiry

Product Description

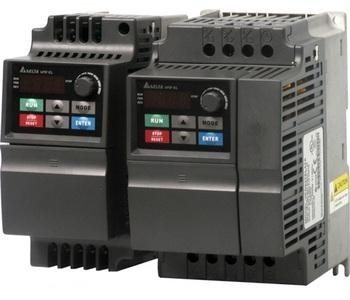

Inverter Delta VFD-EL Series

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.

Applications :

  • Small size pump & fan, blowing machine, conveyer belt, simple DIY processing equipment

Specifications :

  • Output frequency: 0.1~600Hz
  • 3 points adjustable V/f curve
  • Built-in PID feedback control
  • RFI-switch for IT mains
  • Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
  • Use RS-485 communication interface (RJ-45) with Modbus protocol
  • Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
  • Complete protection function
Frame Size Power Range Models
Frame Size
Power Range
Models
Frame B
Frame B el
115 V: 0.75 kW
230 V: 1.5 kW ~ 3.7 kW
460 V: 2.2 kW ~ 3.7 kW
VFD007EL11A
VFD015EL21A
VFD022EL21A / 23A / 43A
VFD037EL23A / 43A
Frame A Frame A el 115 V: 0.2 kW ~ 0.4 kW
230 V: 0.2 kW ~ 1.5 kW
460 V: 0.4 kW ~ 1.5 kW
VFD002EL11A / 21A / 23A
VFD004EL11A / 21A / 23A / 43A
VFD007EL21A / 23A / 43A
VFD015EL23A / 43A
VIEW CATALOG
* Insert a message
* Insert the name
* Insert a valid email

Related Products

  • TOSHIBA

    Details
    Product Information

    TOSHIBA AS1 Series

    The AS1 series adjustable speed drive adds to the strong record Toshiba holds in creating adaptable, consistent, and powerful drives. Manufactured for functionality for the end user, the AS1 uses advanced technology to provide a powerful, reliable, and rugged drive with flexible application control.

    Highlights

    • 100% Continuous Overload Rating, 150% for 60 Seconds
    • Eight Programmable Discrete Inputs with Selectable Sink or Source Logic
    • Three Programmable Discrete Outputs: One Form-C Contact and Two Open Collector Outputs
    • Three Programmable Analog Inputs: One 4 to 20 mA, One 0 to 10 VDC Input, and One ¤10 VDC Input
    • Two Programmable Analog Outputs: One 4 to 20 mA or 0 to 10 VDC and One 0 to 1 mA Output or 0 to 7.5 VDC
    • Two-Wire/Four-Wire RS485
    • Auto-Restart Operation/Catch a Spinning Motor
    • Improved PID Algorithms
    • Built-In EMC Filter

    Standard Features

    • NEMA 1 Enclosure with Additional Conduit Adapter
    • Built-In Dynamic Breaking Drive Circuit up to 250 HP2
    • Past Trip Monitoring: Stores the Last Four Faults in Succession, Along with Cumulative At-Trip Times
    • EOI: Integral Seven-Segment LED Keypad
    • Save, Restore, and Clone Multiple Drive Settings
    • Ambient Temperature: 14° to 122°F (-10° to 50°C)
    • Altitude: Up to 1000 Meters without Derate
    • Humidity: 95% Non-Condensing
    • Standards/Compliance: IEEE, UL Listed in US and Canada, CSA, NEMA, NEC, CE, NOM-117, C-TICK, and GOST
    Details
  • TECO

    Details

    Description

    Spesification

    Available Range
    Power : 0.18Kw ~ 200Kw (0.25Hp ~ 268Hp)

    Type : AEVB (Flange Mounted) & AEEB
    IP : 55
    220/380V For up to 5.5Hp/4Kw 50Hz
    380/660V For up to 7.5Hp/5,5Kw and Up Class
    Class B Temperature Rise

    Available Rpm : 2Pole(3000RPM) , 4Pole (1500RPM) , 6Pole (1000RPM) , , 8Pole (750RPM)

    Body Materials ; Cast Iron

    Description

    Spesification

    Available Range
    Power : 0.18Kw ~ 200Kw (0.25Hp ~ 268Hp)

    Type : AEVB (Flange Mounted) & AEEB
    IP : 55
    220/380V For up to 5.5Hp/4Kw 50Hz
    380/660V For up to 7.5Hp/5,5Kw and Up Class
    Class B Temperature Rise

    Available Rpm : 2Pole(3000RPM) , 4Pole (1500RPM) , 6Pole (1000RPM) , , 8Pole (750RPM)

    Body Materials ; Cast Iron

    Dimensions In Accordance To IEC Standard
    Totally Enclosed Fan CooledLow Voltage Three Phase
    Squirrel Cage Induction Motor
