MILTON ROY

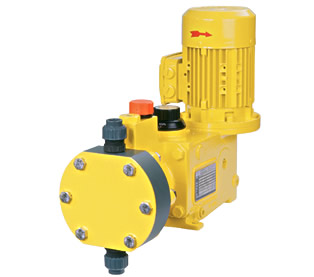

G series mechanical diaphragm metering pump

The characteristics of Variable eccentric mechanism adjustment, gentle pulsation

• various materials and pump head structure optional -PVC, PVDF, 316SS, high viscosity and slurry pump head

• mechanically driven PTFE diaphragm

• material side diaphragm protector, easy to pass through

• three automatic control modes, suitable for various control needs

• manual/electric stroke adjustment is optional

• adjustable stroke 0~100% (automatic/manual)

• the stroke can be adjusted under both static and dynamic conditions

• maximum liquid temperature 40℃*

• steady-state accuracy: ±2% (10%~100%)

• maximum suction: 3m water column *

• maximum suction pressure: 20m water column

• optional dual diaphragm head construction

• recommended maintenance cycle: ≤1.0MPa4000h  0.7 or less MPa8000h, Automatic control mode selection

• electric stroke controller



Categories: PUMPS, MILTON ROY
  • Description
  • Product Inquiry

Product Description

Receive external control signal, adjust the length of metering pump stroke, Thus changes the metering pump output flow.

G series metering pump chooses HE type. Among them, the GB series can choose ECC explosion-proof type.

• frequency conversion controller

Receive external control signal, adjust the speed of metering pump stroke.

Power supply: 380V/50Hz three-phase /220V/50Hz single-phase

Control signal: 4~20mA

• VARIPULSE controller:

Used for GM series metering pump, used for controlling three-phase motor,

Change the stroke frequency, so as to adjust the output flow of metering pump.

Model table of mitron GB series mechanical diaphragm pump:

Model Flow (l/h) Pressure (bar) Motor power Pump head
GB0080 82 10 0.55KW/0.75KW PVC /PVDF /316Stainless steel
GB0180 167 10
GB0250 237 10
GB0350 334 10
GB0450 416 10
GB0500 464 7
GB0600 583 7
GB0700 656 3.5
GB1000 946 3.5
GB1200 1200 3.5 0.75KW
GB1500 1500 3
GB1800 1800 3

Main performance parameters

• maximum flow per head: 1800L/H

• maximum discharge pressure: 12bar

• adjustment ratio 10:1, steady-state accuracy 2%

• suction lifting height up to 3m water column

• maximum inlet pressure is 2bar

• allow material maximum temperature of 40 ℃
